CAT 301.6 - Hydraulic mini excavator
Technical data
Engine |
Full power |
13.7 kW |
Net power |
13.7 kW |
Bulldozer blade
|
Length |
980 mm |
Height of blade |
250 mm |
Digging depth |
225 mm |
Lifting height of blade |
200 mm |

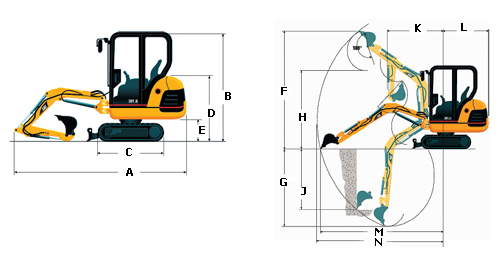

Overall dimensions |
|
|
|
| A |
3690 mm |
| B |
2190 mm |
| C |
1486 mm |
| D |
1150 mm |
| E |
460 mm |
| F |
3420 mm |
| G |
2330 mm |
| H |
2470 mm |
| J |
1810 mm |
| K |
1540 mm |
| L |
1070 mm |
| M |
3800 mm |
| N |
3950 mm |
Total weight |
1770 kg |
|
|
| |
|
|
|
 |
|
|
