CAT 303 - Hydraulic mini excavator
Technical data

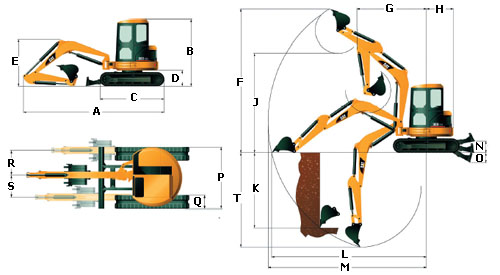

Engine Full power 19.9 kW Net power 19.1 kW Overall dimensions

A 4680 mm B 2480 mm C 2070 mm D 370 mm E 1420 mm F 4600 mm G 2310 mm H 775 mm J 3150 mm K 2540 mm L 5130 mm M 5250 mm N 410 mm O 380 mm P 1550 mm Q 300 mm R 800 mm S 620 mm T 3030 mm Total weight 3420 kg
